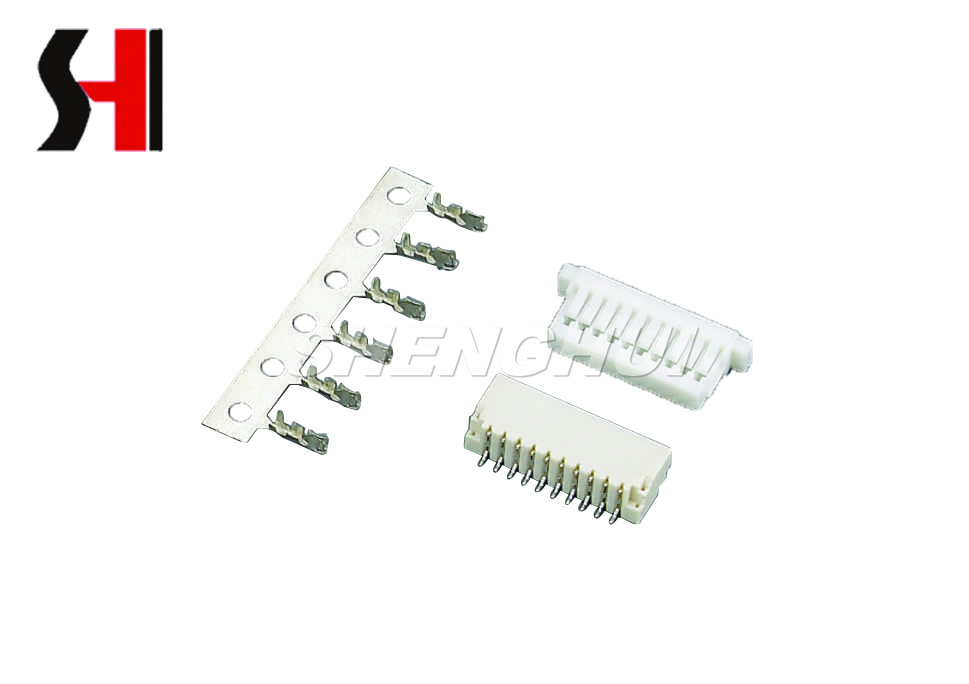

Wire to board connector SH10000-SH1002 Single row

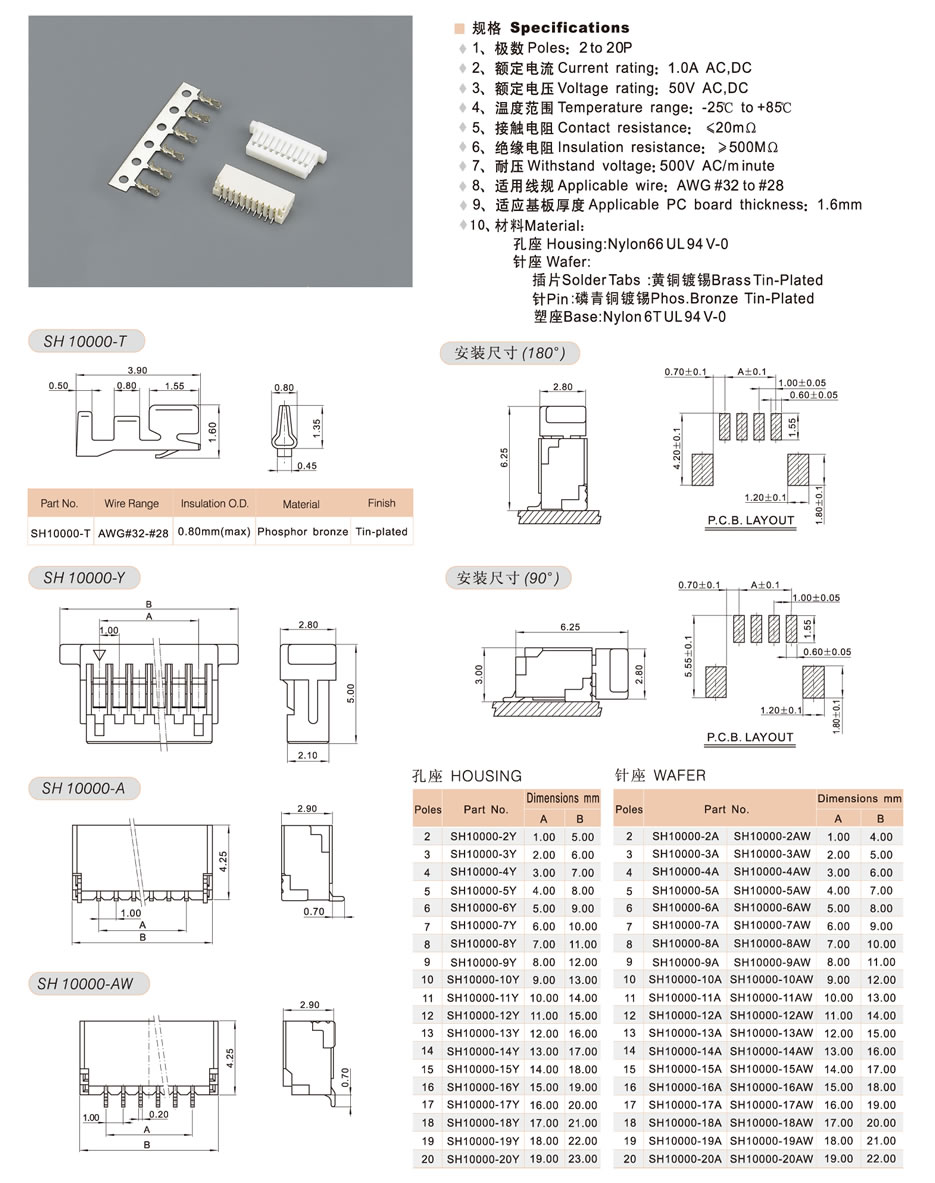

Basic Info

Model No.: SH10000-SH1002

Brand: SHENGHUI

Voltage Rating: 50V AC/DC

Temperature Range: -25℃ to +85℃

Insulation Resistance: ≥ 500MΩ

Withstand Voltage: 500V AC/minute

Poles: 2 to 20P

Current Rating: 1.0A AC/DC

Contact Resistance: ≤ 20mΩ

Applicable Wire: AWG #32 to #28

Applicable PC Board Thickness: 1.6mm

Material: Housing: Nylon66 UL 94 V-0; Solder Tabs: Brass Tin-Plated; Pin: Phos.Bronze Tin-Plated; Base: Nylon 6T UL 94 V-0

Additional Info

Place of Origin: Zhejiang

Product Description

The Wire To Board SH10000-SH1002 Single row connector is designed to provide a reliable and secure connection between wires and circuit boards in a variety of applications. This SH10000-SH1002 Single row Wire To Board Connector features a single-row design, making it a space-efficient choice for compact electronic systems while maintaining strong connectivity.

The Wire To Board SH10000-SH1002 Single row Connector is built with high-quality materials to ensure durability and long-term performance. Its design promotes efficient electrical conduction, minimizing signal loss, and ensuring consistent power delivery. Ideal for environments where high reliability is required, this connector supports a wide range of industries, including consumer electronics, automotive, and telecommunications.

The Wire To Board SH10000-SH1002 Single row connector provides a robust locking mechanism that helps secure connections and prevents accidental disconnections. It is a versatile and cost-effective solution, delivering optimal performance in space-constrained designs. With its excellent features, the SH10000-SH1002 Single row Wire To Board connector is a popular choice for projects requiring both compactness and reliability.
